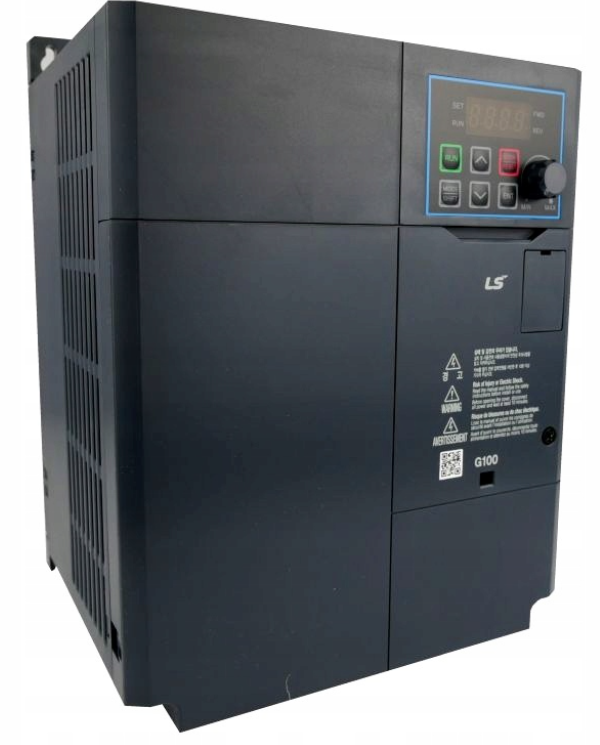

LSLV0055G100-4EOFN 3F 5.5kW, 12A

Description

LSLV0055G100

LS G100 inverter parameters

• Power [kW]: 5,5
• Rated output current [A]: 12A
• Supply voltage [V]: 3x 400..480
• Number of phases at the input: 3
• Number of output phases: 3
• Max. output voltage [V]: 3×400
• Maximum output frequency [Hz]: 400 - s.scalar/120 - s.vector sensorless
• Number of digital inputs: <5
• Number of digital outputs: 2
• Number of analogue inputs: 2
• Number of analogue outputs: 1
• MODBUS RTU/ RS485 communication: Yes
• Communication optional protocols: Ethetnet IP / Modbus TCP / RAPIEnet; Profibus-DP; CANOpen
• Keyboard: Yes
• External keypad for cabinet facade: yes (optional)
• Built-in potentiometer: Yes
• Built-in filter: Yes
• Braking module: Yes
• DC choke: Not
• Expandable (additional cards): Yes
• Dual rating (constant-torque and variable-torque operation): Yes
• STO safety relay: Not
• DIN rail mounting: Not
• Degree of protection (IP): 20
• Weight [kg]: -
• W/H/D [mm]: 180/220/144
• Purpose: General purpose, pumps and fans, feed drives, short conveyors, compressors, mixers and more



Additional information for the G100 series:

• CT - constant-torque operation (heavy load)
• VT - variable torque operation (e.g. fans)

Motor power (max):

• CT: 5.5kW
• VT: 7.0kW

Output current:

• CT: 12A
• VT: 15A
